Muscle Car Stables Listing

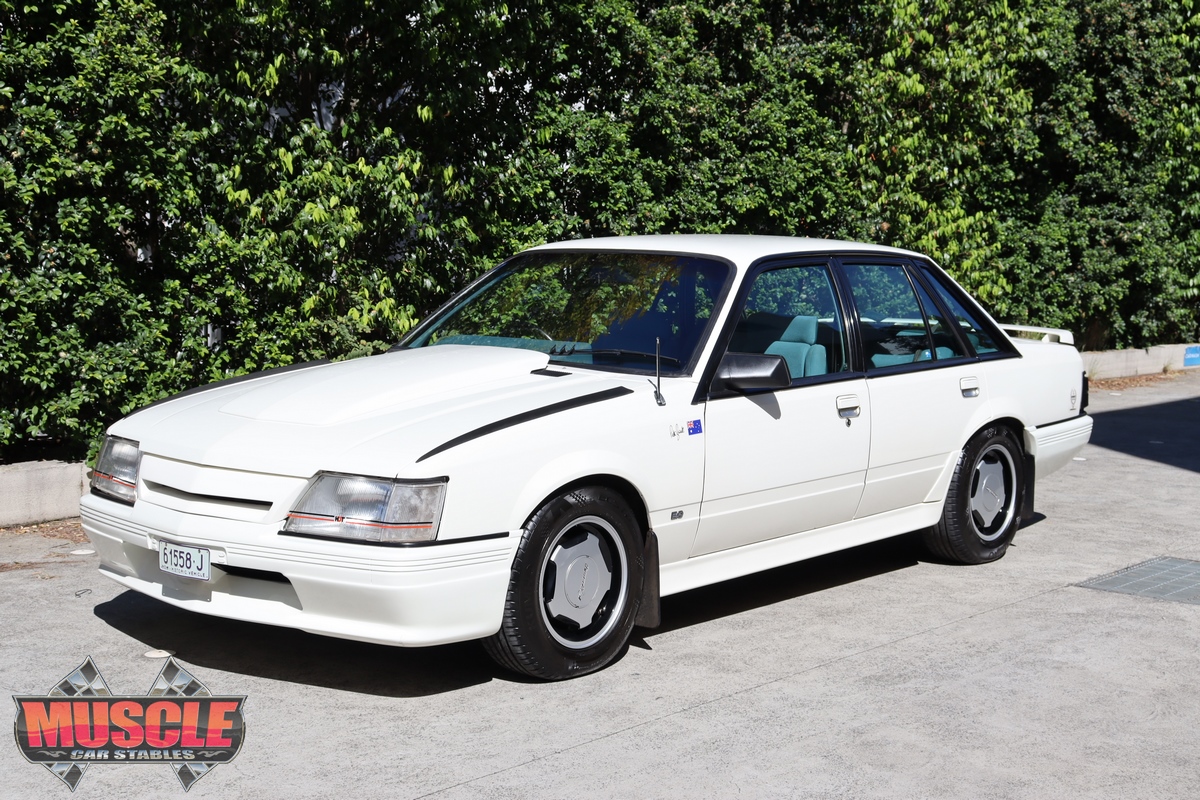

FAIRLY ORIGINAL GROUP A WITH ONLY 86,698 kms from new!

Originally sold new through Motorama Holden,

Unmodified, with only rear speakers updated.

Comes with it’s original logbooks and reasonably low kms- you couldn’t ask for more, even signed by the Man himself- Mr Peter BrocK!!

 This Group A is as follows:

• A very honest example
• Group 3 Kit factory-fitted
• Original Logbook
• Unmodified motor (smooth)
• Original extractors
• Only a handful of previous owners
• 4 Speed Manual car
• Power Steering
• Air-Conditioning
• Factory White wheel car
• Was originally optioned with the Ultrasonic Cobra Car Alarm
• Original spare tyre- never used- still has the original decal on it!
• Original interior-
• Clean engine bay
• Factory fitted Bilstiens in place
• Car runs well and is a tight unit

More photos on request.

For further information/inspection of this vehicle please call Chester- 0414 239 028 today

PLEASE NOTE: ALL Photos taken by Muscle Car Stables- NOT the owner

Modifications

• Non- genuine windscreen
• Aftermarket rear speakers

About the VK HDT SS Group A

Capacity: 4.987 litre

Type: Conventional, watercooled four stroke, reciprocating piston type with 8 cylinders

Configuration: Front mounted, longitudinal, Vee configuration

Head: Pushrod and rocker actuated ohv with two valves per cylinder

Fuel System: Rochester Quadrajet 4 barrel downdraft type carburettor

Bore and Stroke: 101.6 x 76.8mm

Power: 196kw at 5200rpm

Torque: 418Nm at 3600rpm

Compression Ratio: 8.8:1

Ignition and Electrical:

12 volt negative ground

Exhaust:

5.0 litre V8: Single piece cast iron left and right cylinder banks, one outlet per bank.

5.0 litre V8 V5H: Low restriction exhaust system with white heat-proof coated headers

4 speed M21 Manual Transmission:

1st: 2.54:1

2nd: 1.83:1

3rd: 1.38:1

4th: 1.00:1

Reverse: 2.54:1

5 speed Borg-Warner T-5 Manual Transmission:

1st: 2.95:1

2nd: 1.94:1

3rd: 1.34:1

4th: 1.00:1

5th: 0.73:1

Reverse: 3.15:1

Clutch:

Single dry plate diaphram spring actuation type

Top Speed in Gears:

Group Three 4 speed manual:

1st: 77 km/h

2nd: 107 km/h

3rd: 142 km/h

4th: 210 km/h

0-100 km/h: 7.6 seconds

Standing Quarter Mile (400 metres): 15.7 seconds

Standing Quarter Mile (400 metres): n/a

Group A 4 speed manual:

1st: 87 km/h

2nd: 121 km/h

3rd: 161 km/h

4th: 215 km/h

0-100 km/h: 7.0 seconds

Standing Quarter Mile (400 metres): 15.0 seconds

Suspension:

Front: Fully independent, MacPherson struts with coil springs and anti-roll bar. Group A have Bilstein strut inserts and dampers, heavy duty stabiliser bar

Rear: Live axle located by trailing arms and Panhard rod. Coil springs and anti-roll bar; Group A have HDT rear stabiliser kit

Steering:

Power assisted rack and pinion, ratio 15.8:1

Turns lock-to-lock: 3.3

Brakes:

Split circuit system with power booster

Front: 281mm vented discs

Rear: 281mm discs

Wheels:

Group A: 7.0 inch x 16.0 inch HDT Alloys

Tyres:

Group A: Bridgestone Potenza 225/50 VR16
