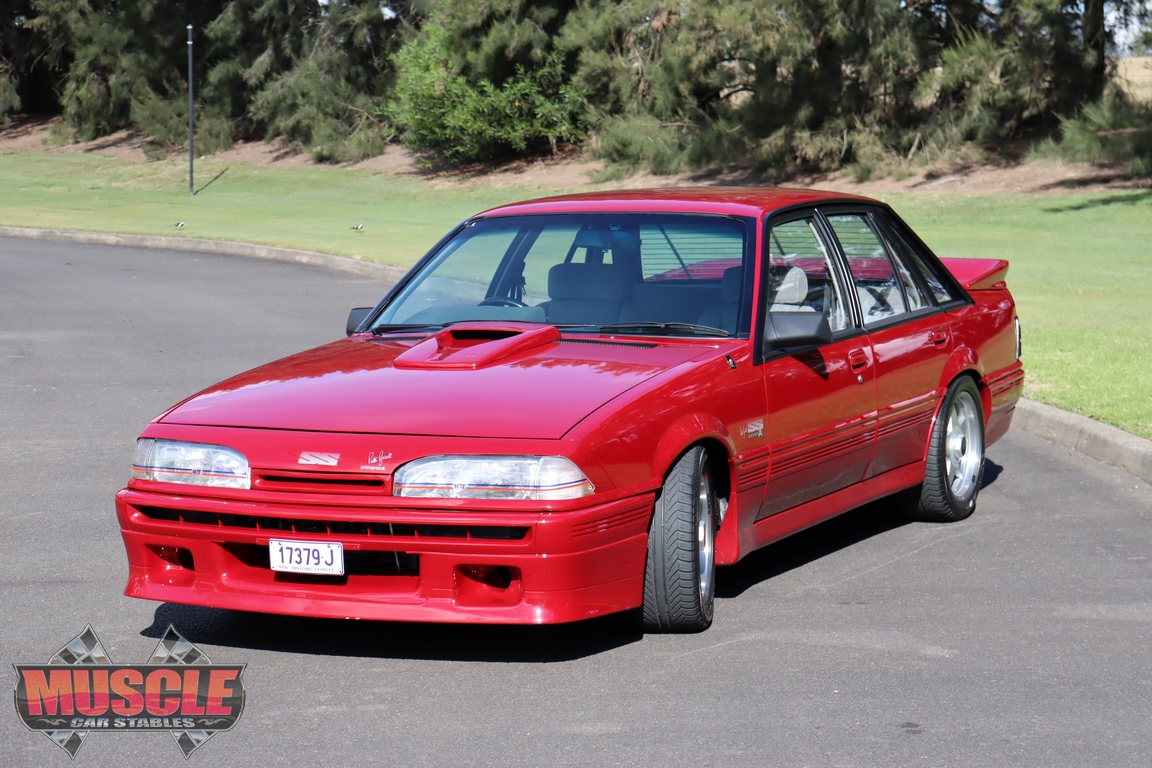

Muscle Car Stables is proud to present for sale this beautifully presented HDT VL SS Group A, Build # 254, which also happens to be a Plus Pack that makes it even

more desirable!

Fast becoming an extremely sought after collectable Australian muscle car between enthusiasts and collectors, this particular vehicle is no exception.

Built in November 1986 and being HDT build number 254/500 is all matching numbers, this is an excellent and original example of an Australian motoring icon.

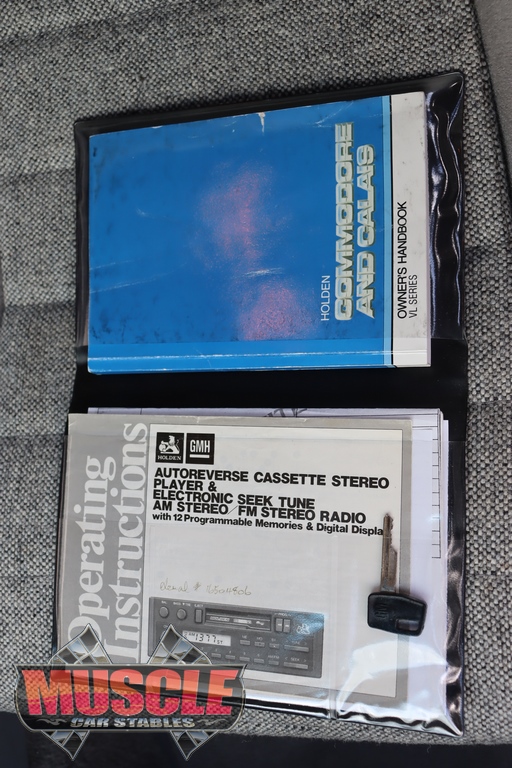

Was delivered new by Wagga Motors Pty Ltd back in 1986, the vehicle comes with a period correct logbook, Radio Instruction leaflet,

HDT Authenticity Certificate, as is one of only 173 Plus Pack models with Peter Brock’s polariser fitted.

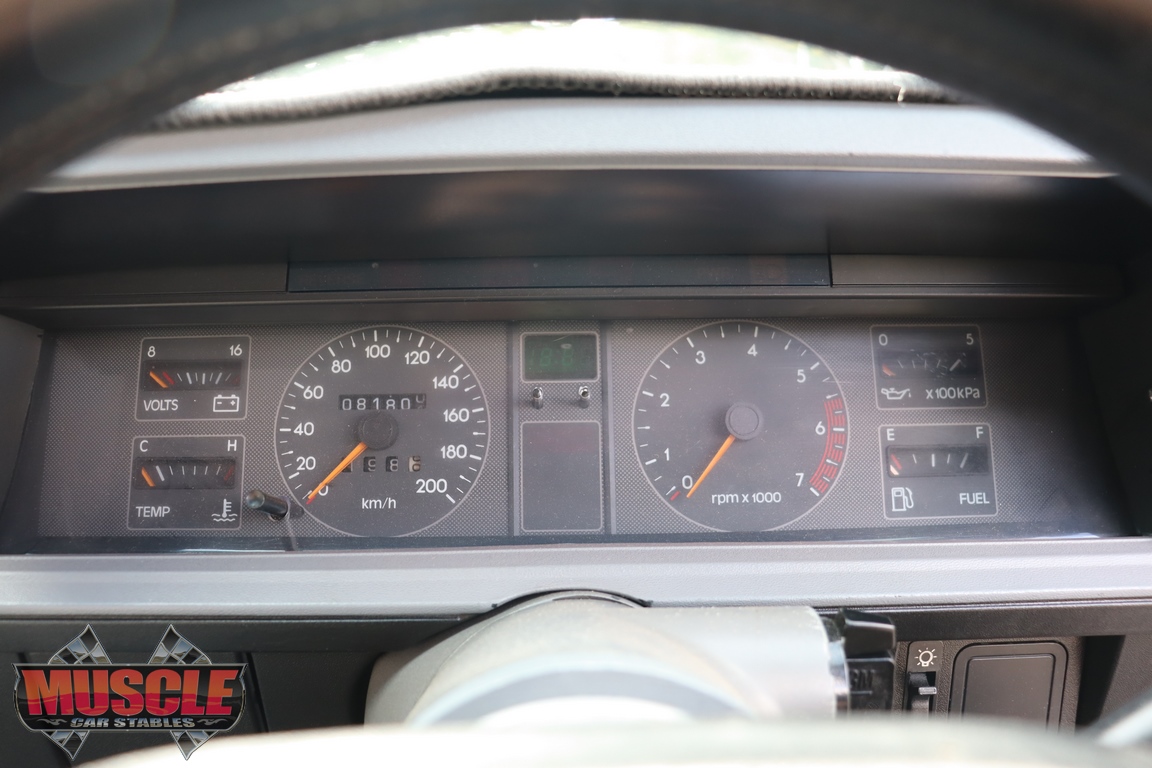

Covering just 81,800kms over it’s 34 year lifespan, this is a low kilometre example that really stands out in crowd.

The Polarizer is mounted to the RHS firewall. As mentioned in the original brochure- “The polarizer utilises the energy generated by the vehicle. It acts on the components of the car, resulting in a quieter, smoother vehicle with more stable handling.

The Plus Pack also included an electric fuel pump, regulator and filter, a cylinder head modification for improved cooling, revised front and rear springs, front anti roll bar, strut mounts, as well as revised front suspension geometry.

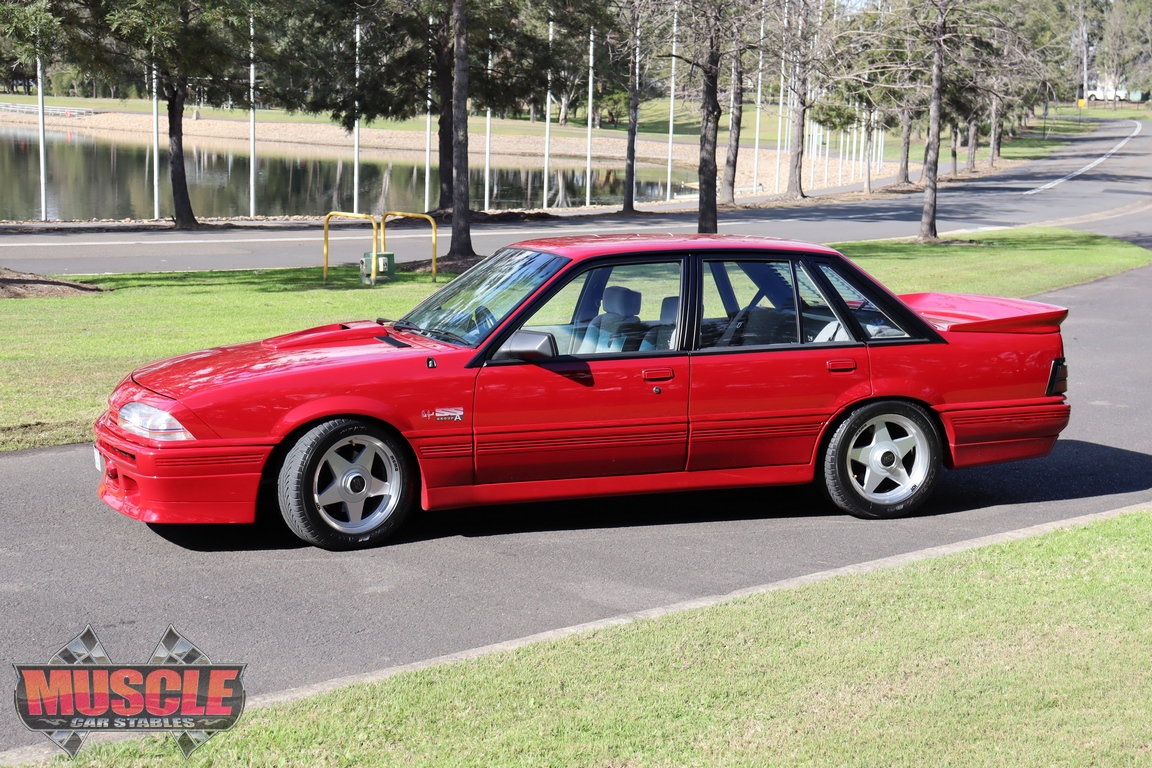

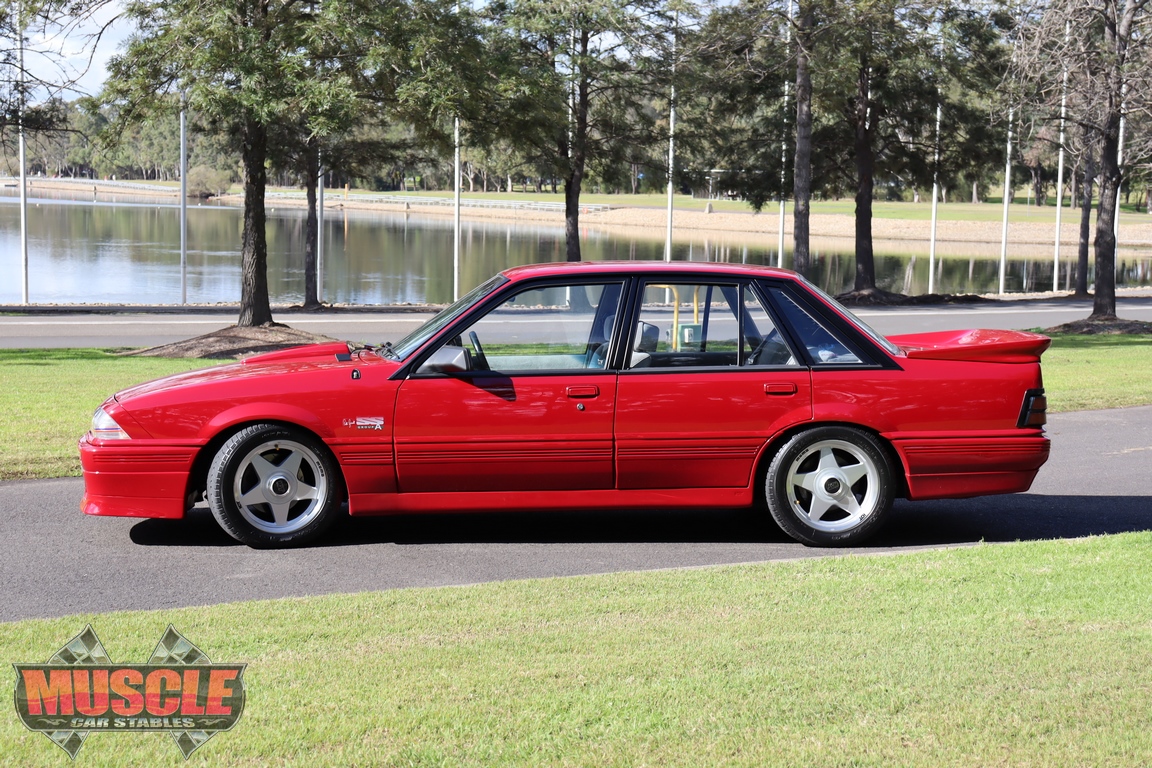

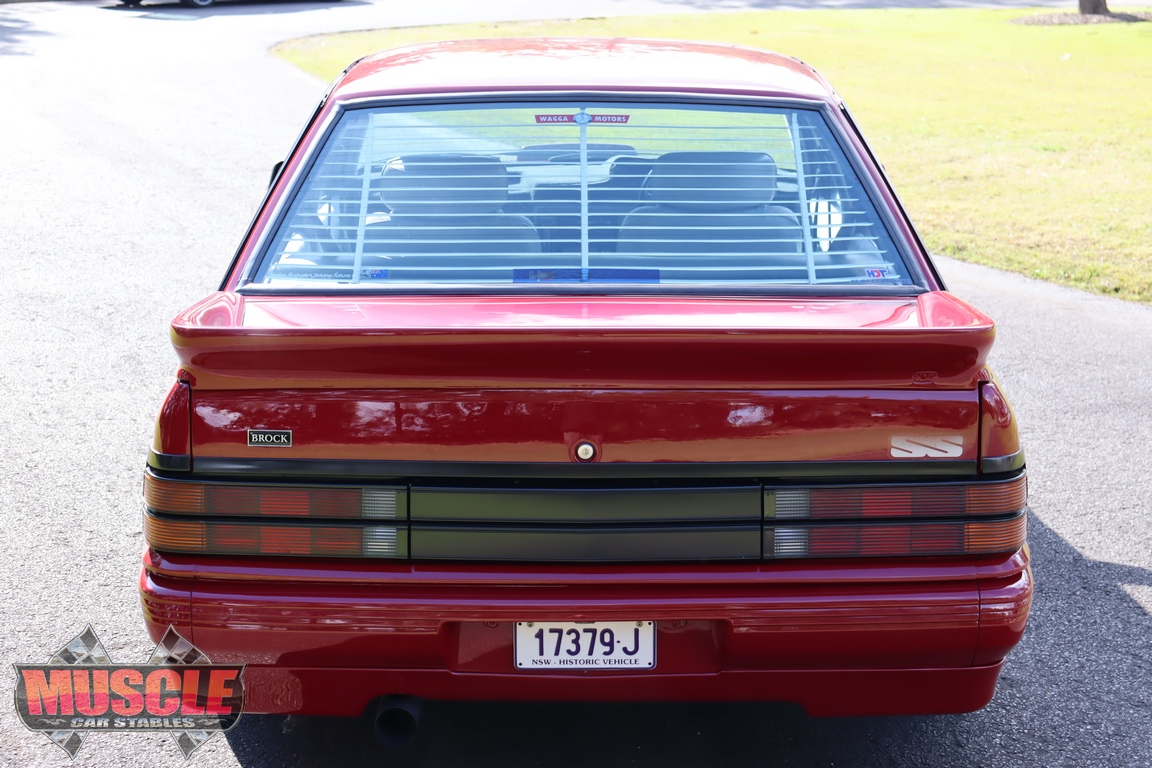

The Group A modifications to the standard VL comprised a redesigned radiator grille, colour keyed bumpers, Racing specification spoilers on the front and on the boot lid and a small grooved Induction scoop attached to the bonnet with a new cold air induction set up.

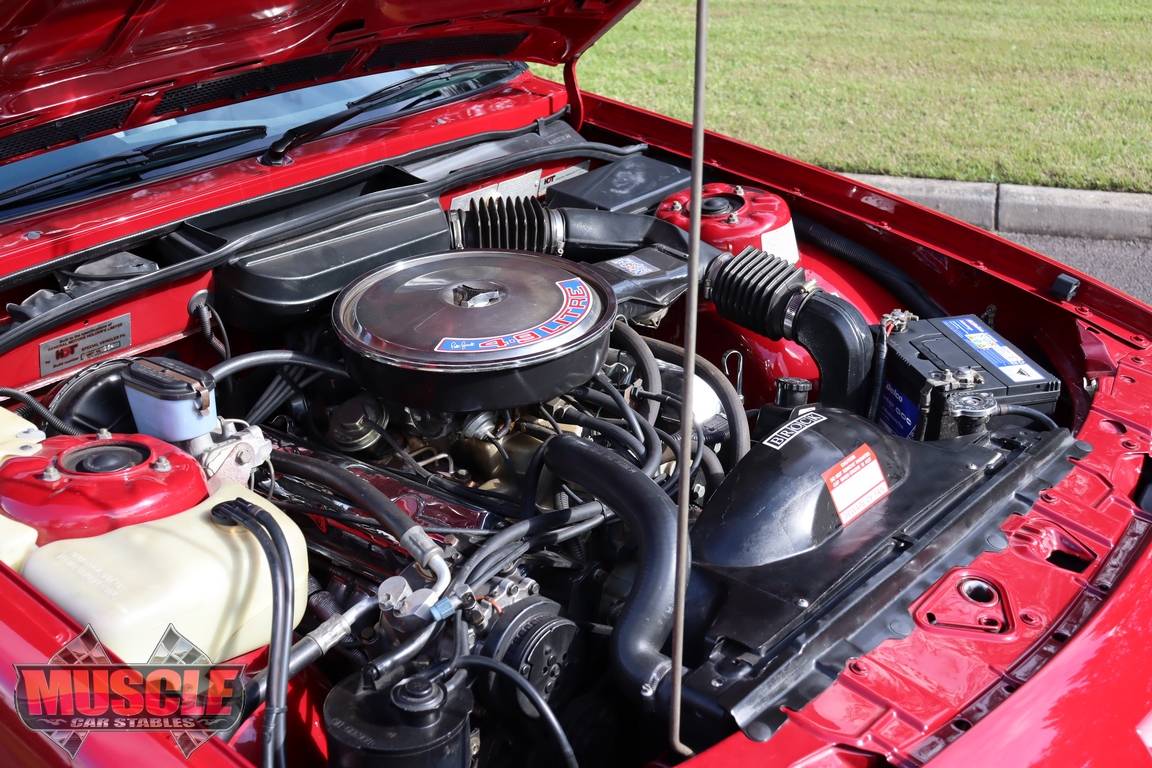

Build No. 254 is running it’s original matching numbers big valve 4.9 litre LV2 V8 and the robust Borg Warner T5 5 speed gearbox through to the 4 pinion Borg Warner 3.08:1 LSD diff.

Fitted are the correct Group A spec extractors with the first join just 2 inches after the cylinder head flange to take advantage of the Group A rules of the day allowing for an open exhaust after the first join.

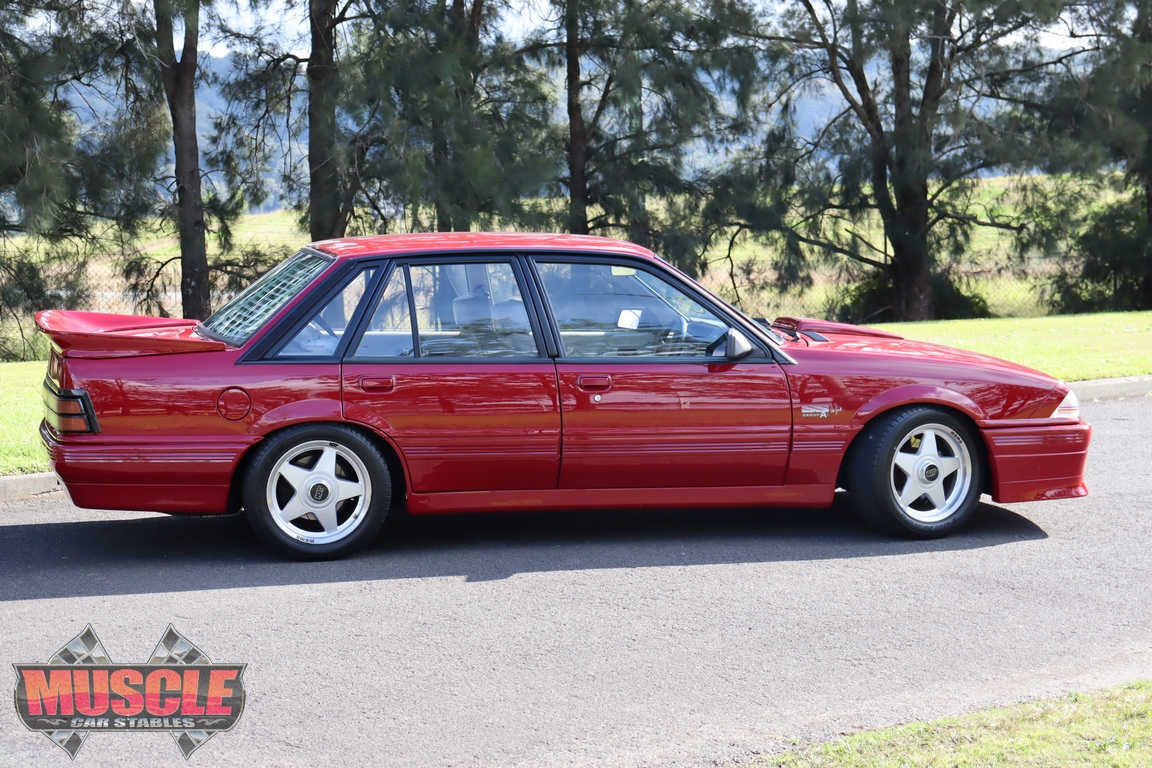

The 16 x 7 MOMO Wheels are in great condition and the Spare wheels still retains it’s Original Bridgestone RE71 Potenza

For more information / photos / organise an inspection please call Chester 0414 239 028

SPECIFICATIONS OF THE HDT VL SS GROUP A PLUS PACK

Engine

4.9 Litre V8 Overhead valve, 2 valves per cylinder. Bore x Stroke (mm): 101.6 x 76.8. Compression ratio: 8.5:1. Max Power: (DIN)137Kw @ 4400rpm and 345Nm at 3200rpm. Max recommended rpm 5600.

Induction
Port matched inlet manifold and four barrel Rochester carburettor with cold air induction.

Tranmission

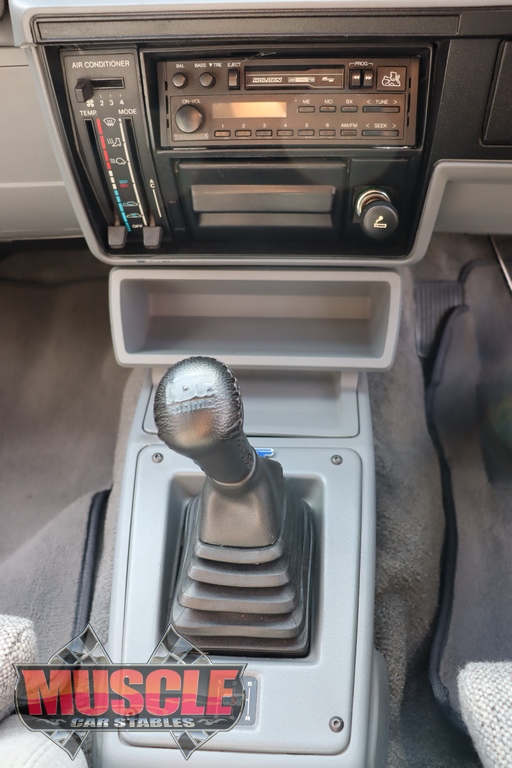

Borg Warner T5G 5 Speed Manual.
Ratios
1st: 3.250
2nd: 1.990
3rd: 1.290
4th: 1.000
5th 0.720

Differential
Borg Warner 4 Pinion limited slip differential. 3.08:1 Final drive ratio.

Clutch
Single Dry Plate.

Steering
Power assisted Rack & Pinion.

Suspension
Front: Fully independent. Macpherson struts with coil springs and anti-roll bar.
Rear: Live axle located by trailing arms and Panhard rod. Coil springs and anti-roll bar.
Bilstein gas-pressurised shock absorbers all round.

Brakes
Power assisted front and rear discs.
Front: 289mm Ventilated discs.
Rear: 280mm discs.

Wheels & tyres
16″ x 7″ Momo star rims, Kelly Charger 205/55/VR16s. 16×8″ Momos were optional.

Performance
0-100: 7.64 seconds.
400m: 15.54 @ 141.7 best time according to Motor Magazine. Average 15.68 @ 139.8 km/h.

Fuel tank
63 Litres.

Numbers built
500 in Permanent Red only. Approximately 173 of these were Plus Packs.
